CNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver Kit

Name: CNC 2 Phase 110mm 22NM Nema 42 LC110150MC2280H Hybrid Stepper Motor And Driver Kit
Brand: LICHUAN
Price: 148.50 USD

Quality CNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver Kit for sale

Model Number : LC110-150+MC2280H

Brand Name : LICHUAN

Place of Origin : Guangdong, China

MOQ : 1 set

Price : $148.50-154.80 / set

Phase : 2

Type : Hybrid

Current / Phase : 6A

Warranty : 3 months ~ 1 year

Step Angle accuracy : ± 5% (whole step )

Torque : 22N.M

Resistance Accuracy : ± 10% (20℃)

Inductance Accuracy : ± 20% (1KHZ)

Temperature Rise : 80°C max (Rated current, 2-phase power)

Ambient Temperature : -20°C ~ +50°C

Insulation Resistance : 100M Min 500 VDC

Matched driver : MC2280H

Dielectric Strength : 500V AC 1 minute

Allowable Radial Load : 0.02mm Max (450g load)

Contact Now

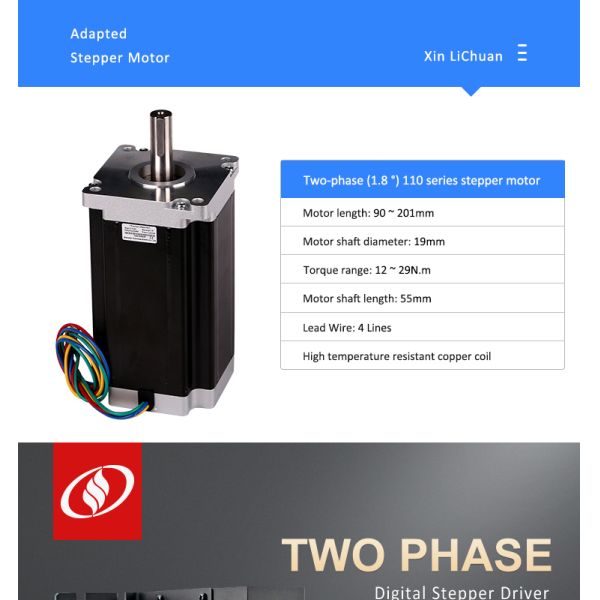

CNC 2 Phase 110mm 22N.M Nema42 LC110-150+MC2280H Hybrid stepper motor and stepper drive kit

Packing list :

No.	Product	Specifications	Qty
1	2ph Nema42 Hybrid stepper motor	LC110-150	1
2	2phase Nema42 Microstep drive	MC2280H	1
3	Motor cable	Standard (0.5m) can make longer kindly contact us	1
4	Notes:	Driver MC860H no cable	0

Packaging & Shipping

FAQ

1. Are you factory?

Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver and planetary reducer for more then 10 years in China. Lichuan is our registered brand.

2. How to select models?

Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.

3. How do you ship the goods?

We normally ship goods by express(DHL/UPS/FEDEX/EMS), by sea and by air, also accept customer

4. Can I test sample?

Yes, sample charged can be offered for testing.

5. Can we be agent or distributor?

Yes, welcome and we will support you.

6. Can you do OEM or ODM service?

Yes, we have R&D department and accept OEM and ODM service.

7. How about warranty?

One year warranty, technical support available, we always try our best to help customers to solve problems
