Lichuan DC Closed Loop Stepper Motor Drivers Kit 0.72N.m 2 Phase Nema17 DC24V～48V 1.2A 1000PPR

Lichuan DC Closed Loop Stepper Motor Drivers Kit 0.72N.m 2 Phase Nema17 DC24V～48V 1.2A 1000PPR

Product Parameter Table

Product Introduction

The Lichuan DC Closed Loop Stepper Motor Drivers Kit is a high-performance motion control solution specifically designed for NEMA17 2-phase stepper systems.
With torque options of 0.48N.m and 0.72N.m, DC 24V–48V power input, 1.2A rated current, and 1000PPR encoder feedback, this kit provides precise positioning, stable torque output, and reliable closed-loop performance.

Compared with traditional open-loop stepper systems, the Lichuan DC Closed Loop Stepper Motor Drivers Kit effectively eliminates step loss and improves efficiency, making it suitable for both industrial automation and advanced hobby-level applications.

Product Information

The Lichuan DC Closed Loop Stepper Motor Drivers Kit integrates a NEMA17 closed-loop stepper motor, a matched driver, and an incremental encoder (1000PPR) into a compact, easy-to-install system.

• Motor Frame Size: NEMA17

• Phase: 2 Phase

• Torque Options: 0.48N.m / 0.72N.m

• Voltage Range: DC 24V–48V

• Rated Current: 1.2A

• Feedback Type: Encoder Closed Loop Control

This configuration enables the Lichuan DC Closed Loop Stepper Motor Drivers Kit to deliver higher accuracy and reliability than open-loop solutions.

Product Description

The Lichuan DC Closed Loop Stepper Motor Drivers Kit uses real-time encoder feedback to continuously monitor motor position and speed.
Even under varying loads or sudden disturbances, the driver automatically corrects deviations, ensuring precise motion control without missed steps.

With 1000PPR encoder resolution, the Lichuan DC Closed Loop Stepper Motor Drivers Kit achieves smooth motion, low vibration, and consistent output performance.

Basic Information

• Brand: Lichuan

• Product Name: DC Closed Loop Stepper Motor Drivers Kit

• Motor Size: NEMA17

• Motor Type: 2 Phase Closed Loop Stepper Motor

• Torque: 0.48N.m / 0.72N.m

• Voltage: DC24V–48V

• Current: 1.2A

• Encoder Resolution: 1000PPR

The Lichuan DC Closed Loop Stepper Motor Drivers Kit is optimized for compact systems requiring high precision.

Product Applications

Typical applications of the Lichuan DC Closed Loop Stepper Motor Drivers Kit include:

• 3D printers and laser engravers

• XYZ linear motion platforms

• Small CNC machines

• Precision positioning modules

• Automated inspection equipment

Specifications

The Lichuan DC Closed Loop Stepper Motor Drivers Kit supports flexible parameter configuration and reliable protection features:

• Input Voltage: DC 24V–48V

• Output Current: Up to 1.2A

• Control Mode: Pulse / Direction (PUL / DIR)

• Encoder Type: Incremental Encoder

• Resolution: 1000PPR

• Motor Phase: 2 Phase

• Frame Size: NEMA17

Product Selling Points

• ✅ True closed-loop control with 1000PPR encoder feedback

• ✅ Available torque options: 0.48N.m and 0.72N.m

• ✅ No step loss under load changes

• ✅ Higher efficiency than open-loop NEMA17 systems

• ✅ DC 24V–48V wide voltage adaptability

These advantages make the Lichuan DC Closed Loop Stepper Motor Drivers Kit a reliable alternative to small servo systems.

Product Features

The Lichuan DC Closed Loop Stepper Motor Drivers Kit offers:

• Accurate position feedback

• Smooth motion at low speed

• Reduced vibration and noise

• Compact NEMA17 design

• Simple wiring and easy integration

Each feature enhances the overall control stability of the Lichuan DC Closed Loop Stepper Motor Drivers Kit.

Product Technology

The Lichuan DC Closed Loop Stepper Motor Drivers Kit ( It adopts digital closed-loop control technology to dynamically adjust the motor current and phase by collecting 1000PPR encoder signals in real time. )

This technology allows the Lichuan DC Closed Loop Stepper Motor Drivers Kit to maintain precise positioning even during rapid acceleration or deceleration.

Product Working Principle

The Lichuan DC Closed Loop Stepper Motor Drivers Kit works as follows:

1. Motion controller sends pulse signals

2. Stepper motor rotates according to commands

3. Encoder feeds back real-time position (1000PPR)

4. Driver corrects any position deviation instantly

This closed-loop principle ensures high accuracy and stable torque output.

Application Fields

The Lichuan DC Closed Loop Stepper Motor Drivers Kit is widely applied in:

• Industrial automation equipment

• CNC engraving and cutting machines

• Packaging and labeling systems

• Medical and laboratory devices

• Robotics and mechatronic systems

Product Advantages

• Improved positioning accuracy

• Higher torque utilization

• No lost steps

• Lower cost compared to servo systems

• Easy replacement for open-loop NEMA17 motors

Product Services

Lichuan provides professional service support for the Lichuan DC Closed Loop Stepper Motor Drivers Kit, including:

• Motor and driver selection guidance

• Parameter tuning support

• OEM & ODM customization

• Technical documentation

Production Process

The Lichuan DC Closed Loop Stepper Motor Drivers Kit is produced under strict quality control:

1. Raw material inspection

2. Motor winding and assembly

3. Encoder installation and calibration

4. Functional testing

5. Final quality inspection

Operation Method

1. Connect DC power supply (24V–48V)

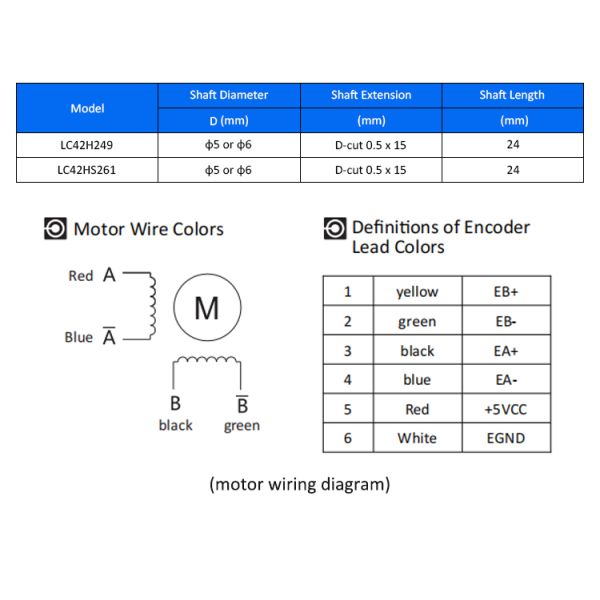

2. Wire motor and encoder correctly

3. Set driver parameters

4. Connect pulse control signals

5. Run and fine-tune performance

Precautions

• Do not exceed rated voltage and current

• Install in dry, well-ventilated environments

• Ensure proper grounding

• Check wiring before powering on

Company Introduction

Lichuan is a professional manufacturer of stepper motors, closed-loop systems, and motion control solutions.
Products like the Lichuan DC Closed Loop Stepper Motor Drivers Kit are widely used in automation, CNC, and robotics worldwide.

Product Certifications

• CE Certification

• RoHS Compliance

• ISO Quality Management System

Quality Assurance

Each Lichuan DC Closed Loop Stepper Motor Drivers Kit undergoes multiple testing stages to ensure stable performance and long service life.

Customer Service

Lichuan offers reliable customer service for the Lichuan DC Closed Loop Stepper Motor Drivers Kit, including:

• Pre-sales consultation

• Fast technical response

• Long-term after-sales support

FAQ

Q1: Can this NEMA17 closed-loop kit replace an open-loop stepper motor?
Yes. The Lichuan DC Closed Loop Stepper Motor Drivers Kit is a direct upgrade solution for open-loop NEMA17 motors.

Q2: What torque options are available?
The kit supports 0.48N.m and 0.72N.m torque versions.

Q3: Is 1000PPR enough for precision control?
For most NEMA17 applications, 1000PPR delivers excellent accuracy and smooth motion.
