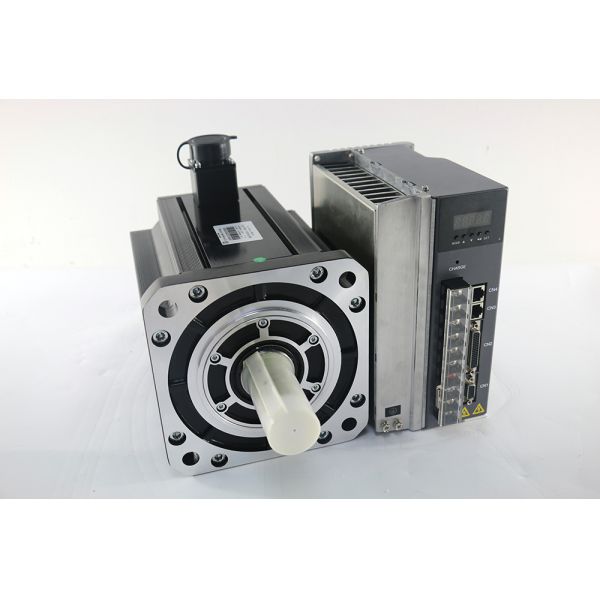

7.5KW 380V 2000RPM 48N.M 23 Bit 3 Phase AC Servo Drive With Brake 180M35020B+M1534P Servomotor

Name: 75KW 380V 2000RPM 48NM 23 Bit 3 Phase AC Servo Drive With Brake 180M35020BM1534P Servomotor
Brand: LICHUAN
Price: 847.80 USD

Quality 7.5KW 380V 2000RPM 48N.M 23 Bit 3 Phase AC Servo Drive With Brake 180M35020B+M1534P Servomotor for sale

Model Number : 180M35020B+M1534P

Brand Name : LICHUAN

Place of Origin : Guangdong, China

MOQ : 1 set

Price : $847.80-954 / set

AC Voltage : 380V

Phase : Three-Phase

Efficiency : IE 2

Frequency : 50/60Hz

Protect Feature : waterproof

Type : Servo Motor, 180M35020B+M1534P

Warranty : 3 months ~ 1 year

Product Name : 3Phase AC Servo motor with Drive

Application : General Machinery

Rated power(KW) : 7.5

Rated voltage(V) : 380

Rated current (A) : 32

Rated speed(rpm) : 1500

Holding torque(N.m) : 48

Peak torque(N.m) : 96

Weight(Kg) : 40

Contact Now

380V 7.5KW 2000RPM 48N.M 23 Bit 3 Phase AC Servo Drive With Brake 180M35020B+M1534P Servomotor

Packing List

NO.	Product Name	Model / Description	Quantity
1	Lichuan 7.5KW 180M48015B Servo Motor	180M35020B	1
2	Lichuan 7.5KW AC Servo Driver	LCDA-7532C23-M1534P	1
3	Motor Cable	Standard (3m)	1
4	Encoder Cable	Standard (3m)	1
5	Servo Driver Instruction Book	Standard	1

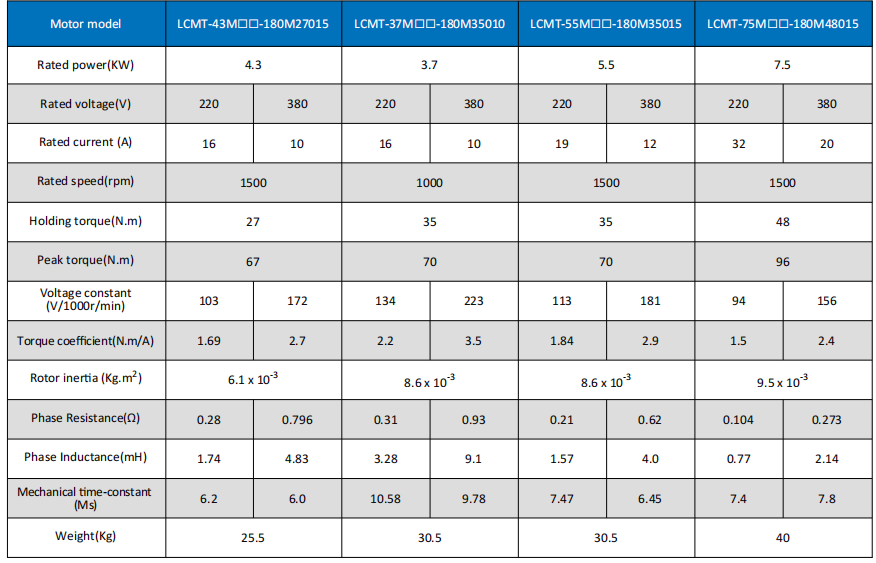

Products Description

Product Name	3 Phase Servo Motor Drive Kit
Type	180M35020B+M1534P
Rated power(KW)	7.5
Rated voltage(V)	380
Rated current (A)	32
Rated speed(rpm)	1500
Holding torque(N.m)	48
Peak torque(N.m)	96
Weight(Kg)	40

7.5KW 380V 2000RPM 48N.M 23 Bit 3 Phase AC Servo Drive With Brake 180M35020B+M1534P Servomotor

Lichuan 180 series AC servo motor includes 2.7KW, 2.9KW, 3KW, 3.7KW, 4.3KW, 4.5KW, 5.5KW, 7.5KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications
