380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P

Name: 380V 1500RPM 140NM 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015BM1534P
Brand: LICHUAN
Price: 3 USD

Quality 380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P for sale

Model Number : 200M140015B+M1534P

Brand Name : LICHUAN

Place of Origin : Guangdong, China

MOQ : 1 set

Price : $3,460 / set

AC Voltage : 380V

Phase : Three-Phase

Efficiency : IE 2

Frequency : 50/60Hz

Protect Feature : waterproof

Type : Servo Motor, 200M140015B+M1534P

Warranty : 3 months ~ 1 year

Product Name : 3Phase AC Servo motor kit

Application : General Machinery

Rated power(KW) : 22

Rated voltage(V) : 380

Rated current (A) : 50

Rated speed(rpm) : 1500

Holding torque(N.m) : 140

Bit : 23 bit incremental

Weight(Kg) : 75

Contact Now

Packing List

NO.	Product Name	Model / Description	Quantity
1	Lichuan 22KW 200M140015B Servo Motor	200M140015B	1

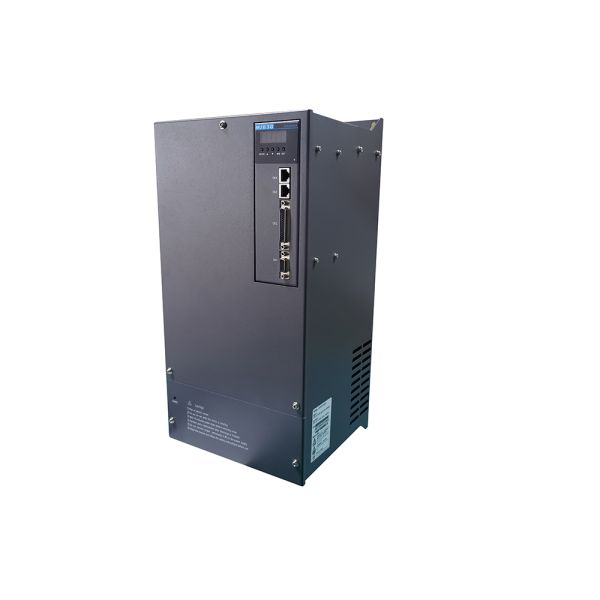

2	Lichuan 22KW AC Servo Driver	LCDA-22045C23-M1534P	1
3	Motor Cable	Standard (3m)	1
4	Encoder Cable	Standard (3m)	1
5	Servo Driver Instruction Book	Standard	1

Products Description

Lichuan 200 series AC servo motor includes 11KW, 15KW, 18.5KW,22KW, 30KW, 37KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications.

380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P

Technical requirements
Motor Name	200M140015B
Flange	200
Rated power	22KW
Rated Current	44.5A
Rated torque	140N.m
Rated voltage	380V
Rated speed	1500r/min
Insulation grade	Grade F
Protection grade	IP65
Ambient temperature	-20°C--+50°C
