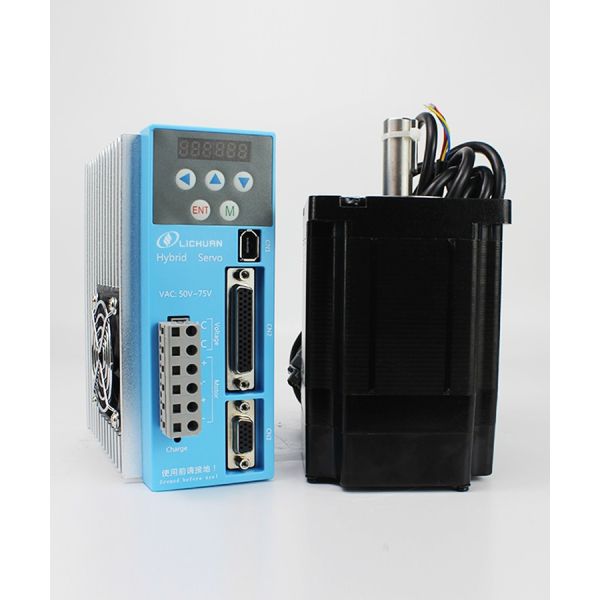

3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E

Model Number : LC86H3129+LCDA2260E

Brand Name : LICHUAN

Place of Origin : Guangdong, China

MOQ : 1 set

Price : $146.52-155.34 / set

Phase : 3

Type : Hybrid

Current / Phase : 3A

Warranty : 3 months ~ 1 year

Product Name : Nema34 closed loop stepper motor kit

Motor+drive Item : LC86H3129+LCDA2260E

Voltage : AC 220V

Application : High Speed CNC Machine

Torque : 10N.M

Holding Torque(N.m) : 10

Phase Current(A) : 3

PPR : 1200

Length (mm) : 154

Weight (kg) : 4.7

Contact Now

Packing List
NO.
Product Name
Model / Description
Quantity
1
Nema 34 closed loop stepper motor
LC86H3129
1
2
Nema 34 closed loop stepper driver
LCDA2260E
1
3
Driver encoder cable
Standard (3m)
1
3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E
Products Description

3 phase 10NM NEMA34 Closed-loop stepper motor driver/ LC86H3129 information
LCDA2260E adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor,obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption. When continuous overload of motor occurs, the Driver will timely output alarm signal, it is as reliable as AC servo system. Applies to motor installation dimensions which are fully compatible with Nema 34/42 series stepper motors, is convenient for upgrading traditional stepper driver solutions and largely reduces cost.
3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E
3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E
3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E
Lichuan 3 Phase Digital Hybrid Servo Driver
Product Model
LCDA2260E
Product Size
179.99*139.9*67mm
Product Weight
1.22KG
Voltage input range
AC 150V~230V
Maximum output current
6A
Pulse form
Pulse + direction,CW/CCW
Logic input current
10~20mA
Pulse corresponding frequency
0~200kHz
insulation resistance
500MΩ
3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E
3 Phase Nema 34 Closed Loop Stepper Motor
Series
Step Angle(°)
Holding Torque(N.m)
Phase Current(A)
Length (mm)
Weight (kg)
LC86H398
1.2
6.0
3.0
123
3.5
LC86H3114
1.2
6.8
3.0
140
4.2
LC86H3129
1.2
10
3.0
154
4.7
LC86H3156
1.2
12
3.0
182
5.5
Application Area
