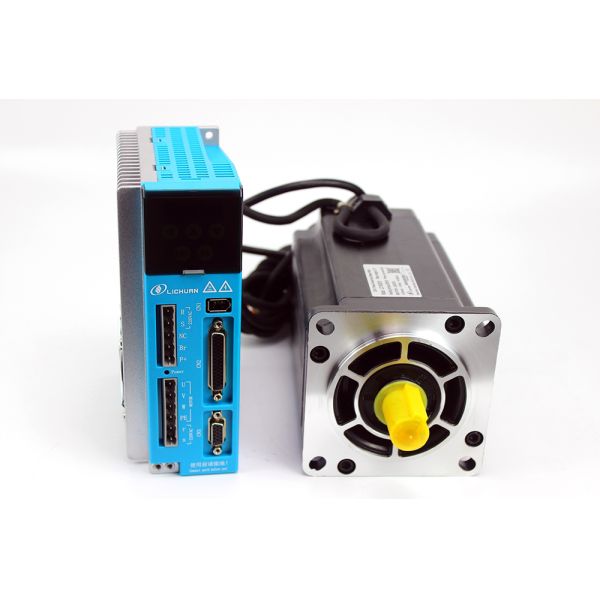

Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219

Name: Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260ELC110H3219
Brand: Lichuan
Price: 198 USD

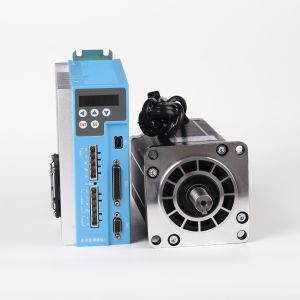

Quality Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219 for sale

Model Number : LC110H3219+LCDA2260E

Brand Name : Lichuan

Place of Origin : Guangdong, China

MOQ : 1 set

Price : $198-214.20 / set

Phase : 3, 3phase

Type : stepper motor

Current / Phase : 6.9A

Warranty : 3 months ~ 1 year

Motor Encoder : 1000ppr

Step Angle Accuracy : +/-5%

Motor weight : 11.1KG

Motor shaft diameter : 19mm

Motor shaft length : 40mm

Holding Torque : 20n.m

Driver step range : 200-51200ppr

Driver voltage : 150-230VDC

Driver pulse feedback frequency : 200Khz

Contact Now

Packing List

NO.	Product Name	Model / Description	Quantity
1	3ph Nema42 closed loop stepper motor	LC110H3219	1
2	3phase closed loop stepper drive	LCDA2260E	1
3	Encoder Cable	Standard (3m)	1

Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219

Products Description

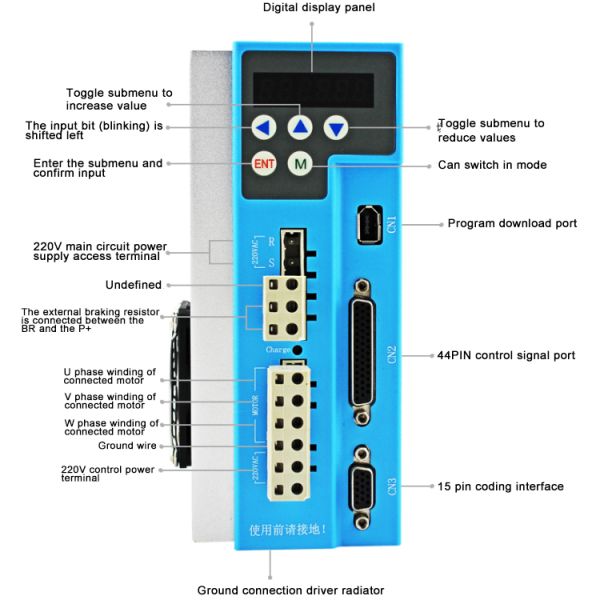

3 phase Closed-loop Stepper Drive LCDA2260E

LCDA2260E adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor, obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption. When continuous overload of motor occurs, the Driver will timely output alarm signal, it is as reliable as AC servo system. Applies to motor installation dimensions which are fully compatible with Nema34/42 series stepper motors, is convenient for upgrading traditional stepper driver solutions and largely reduces cost.

Lichuan 3-phase digital Hybrid Servo Drive
Product Model	LCDA2260E	Product Size	202 x 139 x 75mm
Product Weight	1.33KG	Alarm Output	stand by
Power Range	AC:220V	Subdivision Range	Adjustable on the drive
Current Range	Peak current 6A
Pulse Forml:Pulse + direction
Drice Motor:Three-phase 86 closed-loop stepper motor
Max Pluse Response Frequency:200KHZ(Pulse Width Greater than 2.5μs)
Signal voltage:Default + V5,connected to +V12/V24 requires series resistor

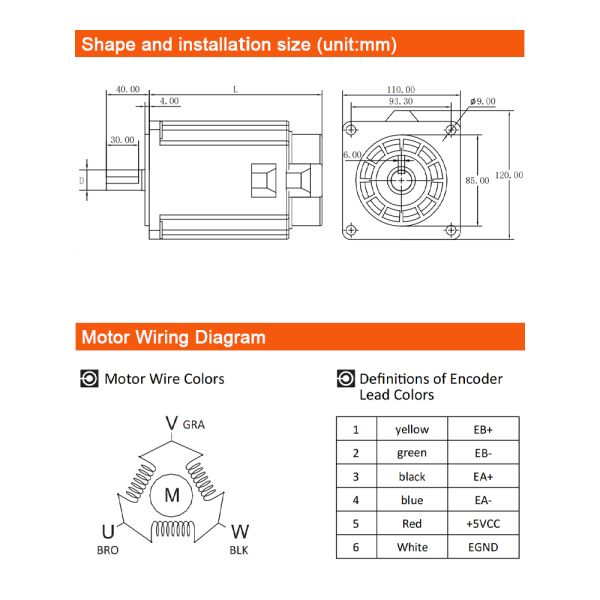

Three-phase 110mm closed-loop stepper motor
Model	LC110H3219
Weight(kg)	11.1KG
Length(mm)	219mm
Holding Torque(N.m)	20N.m
Phase Current(A)	6.9A
Rotational Inertia(g.cm²)	17400
Phase Resistance(Ω)	1.859
Step Angle(°)	1.2
Shaft Diameter(mm)	φ19
Shaft Extension(mm)	Keyway 6 x 30
Shaft Length(mm)	40mm
Phase Inductance(mH)	7.26
Lead wire(No.)	3
