Lichuan DC Open Loop Stepper Motor Drivers Kit 0.6N.m 2 Phase Nema17 DC24V～48V 1.2A

Name: Lichuan DC Open Loop Stepper Motor Drivers Kit 06Nm 2 Phase Nema17 DC24V48V 12A
Brand: Lichuan
Price: 1 USD

Quality Lichuan DC Open Loop Stepper Motor Drivers Kit 0.6N.m 2 Phase Nema17 DC24V～48V 1.2A for sale

Brand Name : Lichuan

Model Number : OL3-E57H+LC42HS60

Certification : ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321

Place of Origin : China

MOQ : 1

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1~5Set 7Days/ 6~100Set 12Days/ ≥101Set Contact Supplier

Delivery Time : 15 work days

Packaging Details : Eco-friendly paper packaging

Brand : LICHUAN

Holding Torque : 0.6N.m

Frame Size : Nema17

Lead Wire (No.) : 4

Supply voltage : DC24V~48V

Step Angle : 1.8 Step Angle

Contact Now

Lichuan DC Open Loop Stepper Motor Drivers Kit 0.6N.m 2 Phase Nema17 DC24V～48V 1.2A

Lichuan DC Open Loop Stepper Motor Drivers Kit

0.12N·m / 0.21N·m / 0.3N·m / 0.4N·m / 0.6N·m | 2-Phase NEMA17 | DC 24V–48V | 1.2A

Product Information

Product Name: Lichuan DC Open Loop Stepper Motor Drivers Kit
Motor Type: 2‑Phase Hybrid Stepper Motor
Frame Size: NEMA17
Control Type: Open Loop Control
Rated Current: 1.2A
Input Voltage: DC 24V–48V
Torque Options: 0.12 / 0.21 / 0.3 / 0.4 / 0.6 N·m
Mounting Style: Standard NEMA17 flange

The Lichuan DC Open Loop Stepper Motor Drivers Kit is designed for easy integration, stable operation, and long‑term use in light industrial and commercial equipment.

Product Overview

The Lichuan DC Open Loop Stepper Motor Drivers Kit is a compact and cost‑effective motion control solution designed for light‑load and high‑precision positioning applications. This Lichuan DC Open Loop Stepper Motor Drivers Kit features a standard 2‑phase NEMA17 stepper motor, wide DC 24V–48V input voltage, and 1.2A rated current, making it ideal for desktop CNC machines, 3D printers, laboratory equipment, and small automation systems.

With multiple torque options from 0.12 N·m to 0.6 N·m, the Lichuan DC Open Loop Stepper Motor Drivers Kit allows users to easily select the optimal configuration based on load requirements while maintaining system simplicity and reliability.

Product Description

The Lichuan DC Open Loop Stepper Motor Drivers Kit combines a high‑quality NEMA17 stepper motor with a reliable open loop driver to deliver smooth and accurate motion control. Using standard Pulse & Direction (PUL/DIR) control signals, this kit is fully compatible with PLCs, CNC controllers, microcontrollers, and motion control cards.

Thanks to its simple open loop structure, the Lichuan DC Open Loop Stepper Motor Drivers Kit offers low maintenance requirements, reduced system cost, and fast commissioning, making it an excellent choice for OEMs, system integrators, and DIY automation projects.

2PHASE NEMA17 STEPPER MOTOR
Model	Step Angle	Motor Length	Holding Torque	Rated Current	Phase Resistance	Phase Inductance	Rotor Inertia	Motor Weight	Lead Wire	Shaft Diameter	Shaft Extension	Shaft Length
Model	(°)	L(mm)	(N.m)	(A)	(Ω)	(mH)	(g.cm²)	(Kg)	(No.)	D(mm)	(mm)	(mm)
LC42HS28	1.8	28	0.12	1.2	0.8	1.0	30	0.15	4	5	D-cut 0.5x15	24
LC42HS34	1.8	34	0.21	1.2	1.2	1.8	35	0.22	4	5	D-cut 0.5x15	24
LC42HS40	1.8	40	0.3	1.2	1.5	2.8	54	0.3	4	5	D-cut 0.5x15	24
LC42HS48	1.8	48	0.4	1.2	1.2	1.6	68	0.38	4	5	D-cut 0.5x15	24
LC42HS60	1.8	60	0.6	1.2	2.75	6.4	102	0.5	4	5	D-cut 0.5x15	24

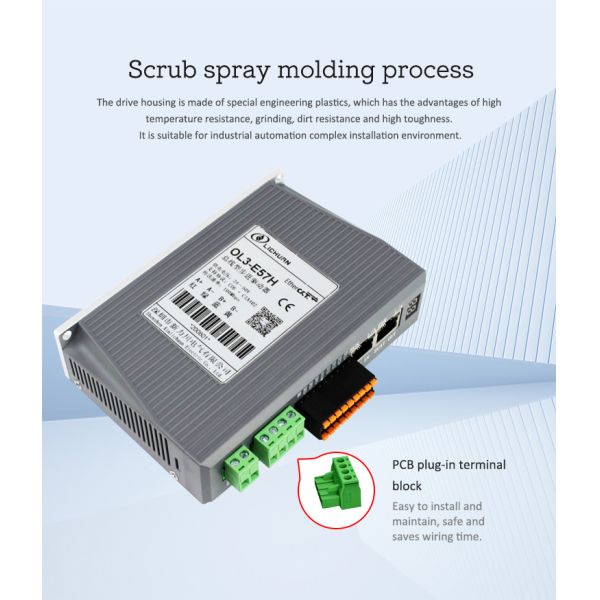

EtherCAT bus-type two-phase step drive
Product Model	OL3-E57H	Product Size	133 x 90 x 34mm
Current Range	Peak current 5A	Product weight	0.3KG
Power Range	DC24V~48V	Drive Motor	two-phase nema17 step motor
Junction port	RJ45	Transmission rate	2x 100 Mbps (full duplex)
Equipment Agreement Standard:	CiA402 Drive Profile
Communication Protocol Standard:	CoE: CANopen over EtherCAT
Bus Address setting:	Two-bit 16-bit Rotary Code, can be used to set from the station address, address range 0x00~0xFF
Control Mode:	PP(Profile Position Mode)protocol location Mode PV(Profile Velocity Mode) protocol speed Mode HM (Homing Mode)back to square one CSP (Cycle Synchronized Position Mode) Cycle synchronization Mode
Digital input:	6 input functions, of which 4 single-ended input isolation,2 differential isolation input,differential maximum input frequency 500 Khz
Digital output:	Three signal outputs and one single -ended brake control
Alarm function:	It has over-current, over-voltage, under-voltage, over-tolerance alarm and so on

Basic Specifications

Item	Description
Brand	Lichuan
Product Series	DC Open Loop Stepper Motor Drivers Kit
Motor Size	NEMA17
Phase	2 Phase
Control Mode	Open Loop
Input Voltage	DC 24V–48V
Rated Current	1.2A
Torque Range	0.12–0.6 N·m

Technical Specifications

Motor Torque Options

Model	Holding Torque
Option A	0.12 N·m
Option B	0.21 N·m
Option C	0.3 N·m
Option D	0.4 N·m
Option E	0.6 N·m

Driver Parameters

Parameter	Value
Input Voltage	DC 24V–48V
Output Current	1.2A
Control Signal	Pulse / Direction
Microstepping	Supported
Protection	Over‑current, Over‑voltage, Over‑temperature
Operating Temperature	−20°C to +60°C
Cooling Method	Natural Cooling

Key Selling Points

Wide DC 24V–48V voltage input
Multiple torque options for flexible selection
Standard NEMA17 mounting for easy replacement
Simple open loop structure with high reliability
Excellent cost‑performance ratio

The Lichuan DC Open Loop Stepper Motor Drivers Kit is optimized for light‑duty automation applications requiring stable and repeatable positioning.

Product Features

2‑phase hybrid stepper motor technology
Compact design for space‑saving installation
Smooth motion with low vibration and noise
Adjustable microstepping for improved performance
Industrial‑grade components for long service life

Technology

The Lichuan DC Open Loop Stepper Motor Drivers Kit uses PWM current control technology to precisely regulate phase current, ensuring stable torque output and reduced motor heating. The driver efficiently manages current according to operating conditions, improving system reliability and energy efficiency.

Working Principle

In the Lichuan DC Open Loop Stepper Motor Drivers Kit, the driver energizes the motor windings sequentially based on incoming pulse signals. Each pulse corresponds to a fixed step angle, enabling accurate position and speed control without feedback devices. Proper torque selection ensures reliable operation under expected load conditions.

Applications

The Lichuan DC Open Loop Stepper Motor Drivers Kit is widely used in:

3D printers
Desktop CNC engraving machines
Laser engraving and marking equipment
Small automation and assembly systems
Educational and laboratory equipment
Smart home motion actuators

Typical Use Cases

Linear modules and lead screw drives
Timing belt transmission systems
Small positioning and feeding mechanisms
Testing and inspection platforms

Product Advantages

Lightweight and compact structure
Easy installation and wiring
Stable batch quality for OEM projects
Reduced system cost compared with closed loop systems

Product Services

Technical consultation and model selection support
Wiring diagrams and parameter documentation
OEM / ODM customization service
Stable long‑term supply for bulk orders

Manufacturing Process

Automatic coil winding
Precision stator and rotor assembly
Driver SMT assembly
Aging test and functional inspection
100% final quality check

Installation & Operation

Connect the DC power supply (24V–48V).
Wire the motor and driver according to the wiring diagram.
Set current and microstepping parameters.
Input pulse signals to test and operate the motor.

Precautions

Do not connect or disconnect wires while powered on.
Ensure adequate ventilation for heat dissipation.
Avoid long‑term overload operation.
Use a regulated DC power supply.

Quality Assurance

100% factory inspection before shipment
Consistent quality control for mass production
Standard warranty service provided

Customer Support

Fast technical response
Application and integration guidance
Long‑term cooperation and bulk pricing support

Certifications

CE
RoHS
(Certifications vary by model and are available upon request.)

Company Profile

Lichuan specializes in the development and manufacturing of stepper motors, drivers, and motion control systems. Its product range includes open loop, closed loop, and integrated stepper solutions widely used in automation, CNC machinery, and intelligent equipment. The Lichuan DC Open Loop Stepper Motor Drivers Kit represents a reliable solution for light‑duty motion control applications.

FAQ

Q1: Is this kit open loop or closed loop?
A: This is an open loop system. The Lichuan DC Open Loop Stepper Motor Drivers Kit does not use encoder feedback.

Q2: Is it suitable for high‑precision applications?
A: It is suitable for light‑load and high repeatability applications. For anti‑step‑loss requirements, a closed loop system is recommended.

Q3: What power supply voltage is recommended?
A: A 36V or 48V DC power supply is recommended for optimal speed and performance.
