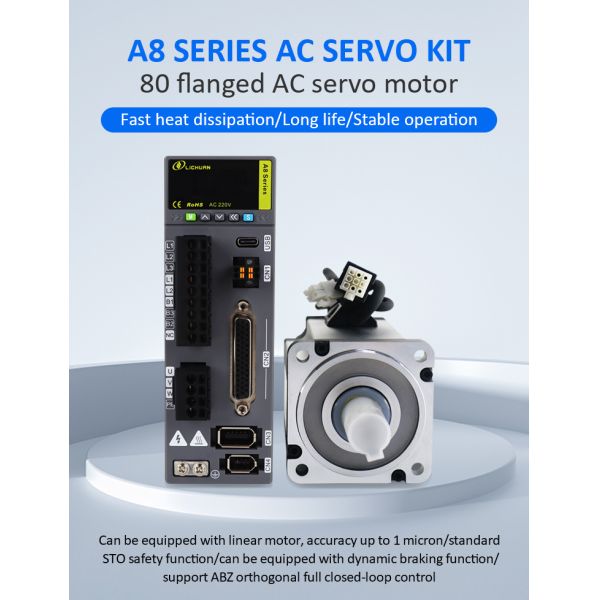

Lichuan AC Servo Motor Drivers Kit A8 High Accuracy STO ABZ 1001W 1KW 4.0N.m 220V 4.6A 2500/3000RPM IP65
Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit — Product Overview
Lichuan A8 series Servo Motor Driver advantages:
Highlights:
1.Can be equipped with linear motors, achieving accuracy up to 1 micron
2.Standard STO safety function
3.Optional dynamic braking function for safety and reliability
4.Supports ABZ quadrature pulse full closed-loop control
Functions:
1.Supports 17-bit and 23-bit incremental and absolute encoders.
2.Supports 7 control modes: position, speed, torque, position/torque, position/speed, speed/torque, and position/speed/torque.
3.Internal 24V voltage output: Can power the DI and Pulse ports, eliminating the need for an external 24V power supply.
4.Supports ABZ phase pulse frequency division feedback.
5.16 virtual DI ports and 16 virtual D0 ports: No need to worry about insufficient DI or D0 ports when using communication control.
6.16 internal speed and 16 internal position segments: Automatic cycle operation is available, making 485 communication control more flexible.
7.Supports motor self-learning: Can be used with motors from different manufacturers.
8.Supports 485 bus communication, using the standard MODBUS RTU protocol.
9.Analog signal control, support input 2 analog inputs, 12-bit resolution, input range -10 to +10V.
Product Description
The Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit integrates high-performance AC servo motors with advanced A8 series servo drivers. Featuring STO dual-channel safety protection and ABZ encoder feedback, the system delivers exceptionally precise positioning and speed control.
Its intelligent control algorithms ensure smooth operation, enhanced torque stability, and rapid dynamic response, supporting demanding industrial environments requiring high reliability.
Product Introduction
The Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit is an advanced industrial-grade servo control solution designed for high-precision motion, stable torque output, real-time feedback, and intelligent protection. Built with STO security, ABZ encoder feedback, and high-speed AC servo control, this kit ensures accuracy, durability, and reliability across industrial automation applications.
Its compact structure, powerful performance, and wide compatibility make the Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit ideal for OEM manufacturers, production lines, robotics, CNC machines, and automated equipment.
Product Information
-
Product Name: Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit
-
Brand: Lichuan
-
Function: High-precision servo control with STO & ABZ encoder
-
Power Supply: AC input
-
Core Features: Safety torque-off (STO), ABZ pulse output, high accuracy, stable performance
-
Application Level: Industrial automation, robotics, CNC systems
-
SEO Keyword Integration: Included across content for optimal Google AI indexing

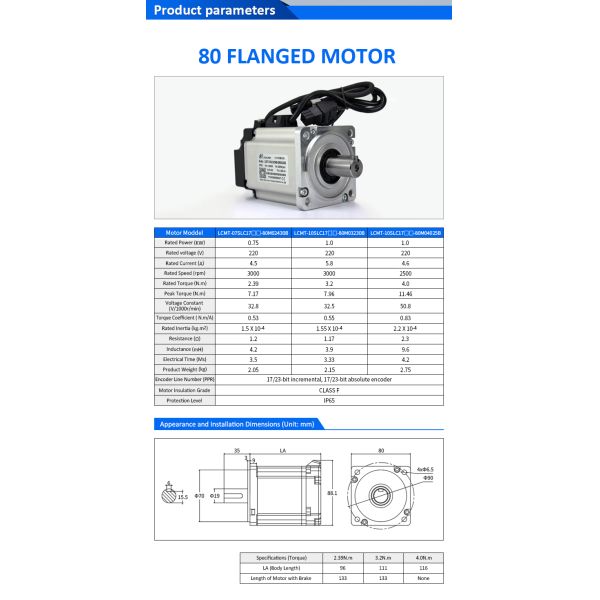

| 80 FLANGED MOTOR |
| Motor Moddel |
LCMT-07SLC17-80M02430B |
LCMT-10SLC17-80M03230B |
LCMT-10SLC17-80M04025B |
| Rated Power (KW) |
0.75 |
1.0 |
1.0 |
| Rated voltage (V) |
220 |
220 |
220 |
| Rated Current (A) |
4.5 |
5.8 |
4.6 |
| Rated Speed (rpm) |
3000 |
3000 |
2500 |
| Rated Torque (N.m) |
2.39 |
3.2 |
4.0 |
| Peak Torque (N.m) |
7.17 |
7.96 |
11.46 |
| Voltage Constant(V/1000r/min) |
32.8 |
32.5 |
50.8 |
| Torque Coefficient(N.m/A) |
0.53 |
0.55 |
0.83 |
| Rated Inertia (kg.m²) |
1.5X10-4 |
1.55X10-4 |
2.2X10-4 |
| Resistance (Ω) |
1.2 |
1.17 |
2.3 |
| Inductance (mH) |
4.2 |
3.9 |
9.6 |
| Electrical Time (Ms) |
3.5 |
3.33 |
4.2 |
| Product Weight (kg) |
2.05 |
2.15 |
2.75 |
| Encoder Line Number (PPR) |
17/23-bit incremental, 17/23-bit absolute encoder |
| Motor Insulation Grade |
CLASS F |
| Protection Level |
IP65 |

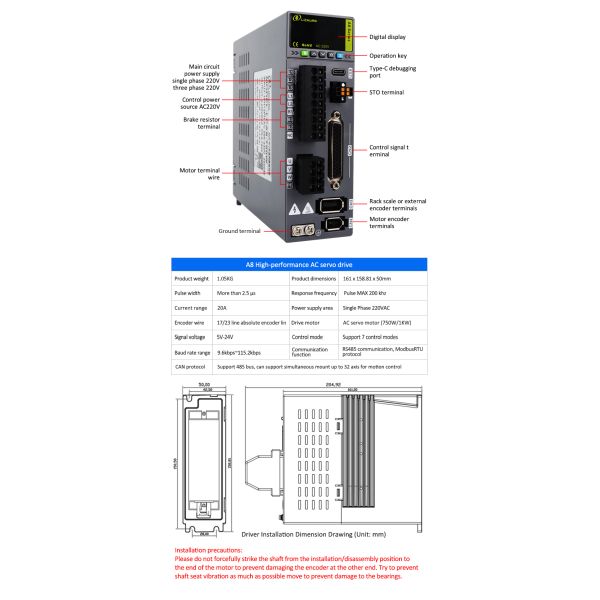

| A8 High-performance AC servo drive |
| Product weight |
1.05KG |
Product dimensions |
161x158.81x50mm |
| Pulse width |
More than 2.5 us |
Response frequency |
Pulse MAX 200 khz |
| Current range |
20A |
Power supply area |
Single Phase 220VAC |
| Encoder wire |
17/23 line absolute encoder lin |
Drive motor |
AC servo motor (750W/1KW) |
| Signal voltage |
5V-24V |
Control mode |
Support 7 control modes |
| Baud rate range |
9.6kbps~115.2kbps |
Communication function |
RS485 communication, ModbusRTU protocol |
| CAN protocol |
Support 485 bus, can support simultaneous mount up to 32 axis for motion control |
Basic Information
-
Model: A8
-
System Type: AC servo drive + motor kit
-
Encoder Type: ABZ pulse encoder feedback
-
Safety Function: STO (Safety Torque-Off)
-
Accuracy Level: High-precision industrial grade
-
Control Mode: Position / Speed / Torque
-
Industry Standard: Industrial automation grade
Specifications
The Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit includes a complete servo system with the following specifications:
-
AC voltage input
-
Integrated STO protection dual-channel
-
ABZ precise pulse feedback
-
High-speed response < 2 ms
-
Adjustable torque parameters
-
Multi-mode input/output signals
-
Intelligent adaptive tuning
Product Selling Points
1. High Precision Motion Control
Powered by ABZ feedback and an A8 servo algorithm, the Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit achieves ultra-stable and accurate positioning.
2. STO Functional Safety
Built-in Safety Torque-Off (STO) ensures reliable shutdown during emergencies and meets industrial safety requirements.
3. Fast Dynamic Response
Designed for immediate torque output and rapid speed correction in high-performance industries.
4. Industry-Grade Durability
Optimized for long-term operation under heavy load and continuous duty cycles.
5. Plug-and-Play Servo Kit
Driver + motor matching improves installation convenience and system compatibility.
Product Features
-
Precision ABZ encoder
-
STO dual-channel security
-
High accuracy control algorithm
-
Stable torque output
-
Low noise operation
-
Long service life
-
Multi-protocol compatibility
-
Intelligent parameter tuning
Technical Details
The Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit uses a digital-signal-processor (DSP)-based AC servo driver, combined with a high-sensitivity ABZ encoder motor.
Key advantages include:
-
DSP real-time processing
-
High-speed pulse interpolation
-
Adaptive filter control
-
Current loop + speed loop + position loop optimization
-
Anti-vibration control technology
Working Principle
-
Driver Receives Command Signals
(Pulse, analog, digital, or internal programming)
-
ABZ Encoder Provides Real-Time Feedback
Ensuring accurate position tracking
-
A8 Driver Calculates Output Torque + Speed
Using advanced servo control algorithms
-
Motor Executes High-Precision Movement
-
STO Safety Circuit Interrupts Power When Required
Protecting equipment + operators
Application Fields
The Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit is widely used in:
Product Uses
-
High-accuracy positioning
-
Automated motion control
-
Speed-sensitive operations
-
Repetitive high-precision tasks
-
High-speed assembly lines
-
Multi-axis motion systems
Technical Parameter Table
| Parameter |
Value |
| Product |
Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit |
| Motor Type |
AC Servo Motor |
| Driver Series |
A8 |
| Encoder Type |
ABZ Feedback |
| Safety Feature |
STO Dual-Channel |
| Control Mode |
Position / Speed / Torque |
| Voltage |
AC Input |
| Precision |
High-Accuracy Industrial Grade |
| Applications |
CNC, robotics, automation, packaging |
Product Advantages
Available Services
FAQ
Q1: What is included in the Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit?
A: Motor + A8 driver + cables + ABZ encoder system.
Q2: Does it support emergency stop?
A: Yes, the built-in STO dual-channel ensures safe power-off.
Q3: Is it easy to install?
A: Yes, plug-and-play wiring with standard connectors.
Q4: Which machines does it support?
A: CNC, automation lines, packaging machines, robotics, etc.
Manufacturing Process

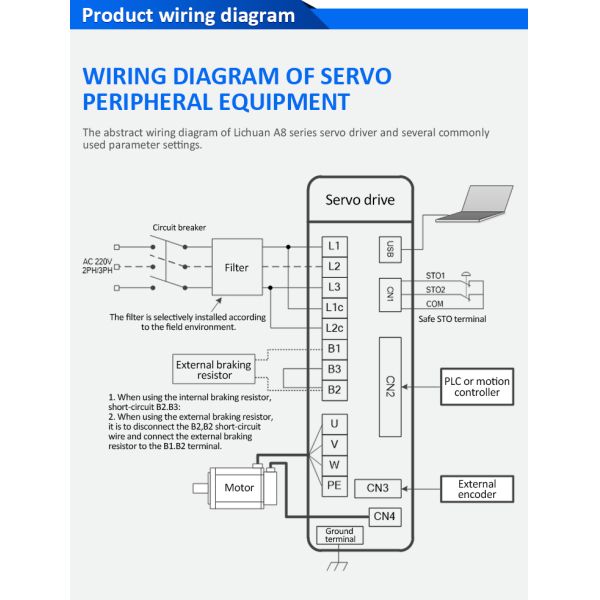

Operating Instructions
-
Connect AC input
-
Wire motor + encoder
-
Configure A8 driver parameters
-
Test motor direction
-
Set speed/position mode
-
Begin operation
Precautions
-
Do not operate in high humidity/oil environments
-
Ensure proper grounding
-
Avoid overload conditions
-
Check encoder cable connection regularly
-
Enable STO only for safety shutdown
Quality Assurance
-
100% full inspection
-
Driver + motor matching test
-
Encoder stability verification
-
Long-term continuous load testing
-
One-year standard warranty
Customer Service Information
Product Certifications
Company Introduction
Lichuan is a professional manufacturer specializing in servo motors, servo drivers, and motion-control systems. With strong R&D capability, global distribution networks, and industrial-grade reliability, Lichuan delivers high-performance automation components such as the Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit to global markets.
