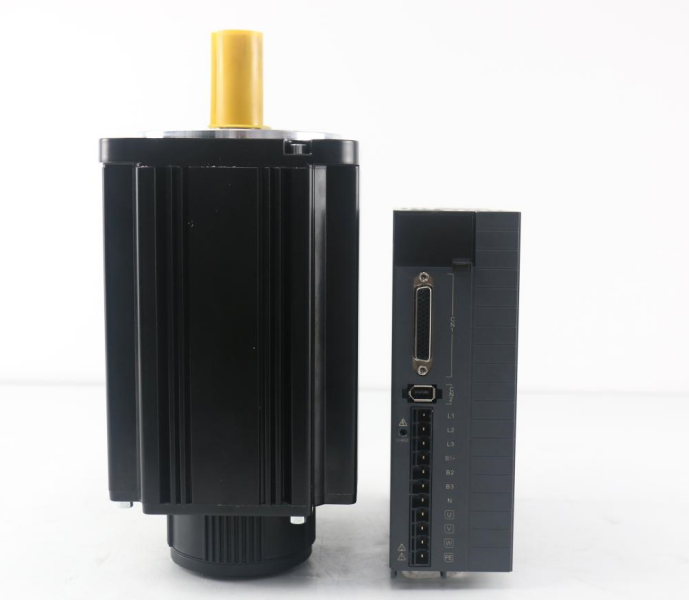

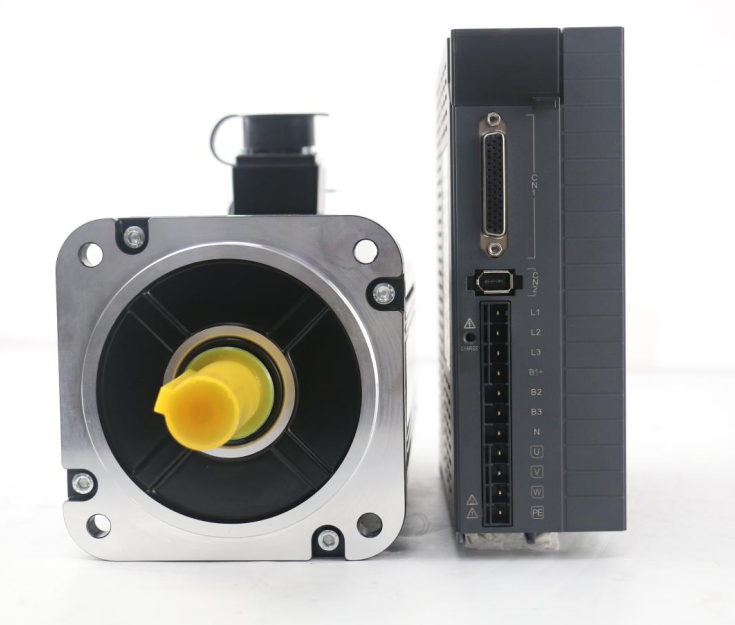

3.8KW 15Nm 380V 2500RPM 23bit 130mm 3 Phase AC Lichuan Motor With Driver 130M15025B+M2532P

Name: 38KW 15Nm 380V 2500RPM 23bit 130mm 3 Phase AC Lichuan Motor With Driver 130M15025BM2532P
Brand: LICHUAN
Price: 459.72 USD

Quality 3.8KW 15Nm 380V 2500RPM 23bit 130mm 3 Phase AC Lichuan Motor With Driver 130M15025B+M2532P for sale

Model Number : LCMT-26MCC23NB-130M10025B+LCDA-3808C23-M2532P

Brand Name : LICHUAN

Place of Origin : GUA

MOQ : 1 set

Price : $459.72-522.72 / set

AC Voltage : 380V

Phase : Three-Phase

Efficiency : IE 2

Frequency : 2500RPM

Protect Feature : waterproof

Type : Servo Motor

Warranty : 3 months ~ 1 year

Product Name : 3Phase Servo Motor with Drive Kit

Rated voltage(V) : 380V

Rated power(KW) : 3.8KW

Rated current (A) : 13.5

Rated speed(rpm) : 2500

Holding torque(N.m) : 15

Peak torque(N.m) : 30

Bit : 23 bit incremental

Weight(Kg) : 14.4

Safety class : IP66

Contact Now

Packing List

NO.	Product Name	Model / Description	Quantity
1	Lichuan 3.8KW 130M15025B Servo Motor	130M15025B	1
2	Lichuan 3.8KW AC Servo Driver	LCDA-3808C23-M2532P	1
3	Motor Cable	Standard (3m)	1
4	Encoder Cable	Standard (3m)	1
5	Servo Driver Instruction Book	Standard	1

3.8KW 15Nm 380V 2500RPM 23bit 130mm 3 Phase AC Lichuan Motor With Driver 130M15025B+M2532P

Products Description

Product Name	3 Phase Servo Motor Drive Kit
Type	130M15025B+LCDA-3808C23-M2532P
Rated power(KW)	3.8
Rated voltage(V)	380V
Rated current (A)	13.5
Rated speed(rpm)	2500
Holding torque(N.m)	15
Weight(Kg)	14.4
Bit	23 bit incremental

Lichuan 130 series AC servo motor contains 1KW,1.3KW,1.5KW, 2KW, 2.3KW, 2.6KW, 3.8KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and high temperature permanent magnet material , Servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high precision control applications.
