Lichuan Closed Loop Integrated Stepper Motors Driver 8.5N.m 2Phase Nema34 48V 6.0A 1000PPR

Name: Lichuan Closed Loop Integrated Stepper Motors Driver 85Nm 2Phase Nema34 48V 60A 1000PPR
Brand: Lichuan
Price: 1 USD

Quality Lichuan Closed Loop Integrated Stepper Motors Driver 8.5N.m 2Phase Nema34 48V 6.0A 1000PPR for sale

Brand Name : Lichuan

Model Number : TLC86P-8.5N.m

Certification : ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321

Place of Origin : China

MOQ : 1

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1~5Set 7Days/ 6~100Set 12Days/ ≥101Set Contact Supplier

Delivery Time : 15 work days

Packaging Details : Eco-friendly paper packaging

Brand : LICHUAN

Holding Torque : 8.5N.m

Frame Size : Nema34

Encoder Resolution(PPR) : 1000PPR

Supply voltage : 48V

Motor Length(mm) : 125.2mm/159.2mm/173.2mm/195.2mm

Rotor Inertia(g.cm²) : 1400g.cm²/2800g.cm²/3200g.cm²/4000g.cm²

Contact Now

Lichuan Closed Loop Integrated Stepper Motors Driver 8.5N.m 2Phase Nema34 48V 6.0A 1000PPR

Product Description

This Closed Loop Integrated Stepper Motors Driver series integrates motor, drive, and control electronics into a single housing, reducing wiring complexity and improving system reliability. With torque options from 0.4N.m, 0.8N.m, 1.0N.m, 2.0N.m, 3.0N.m, 3.5N.m, 4.0N.m, 4.5N.m, 8.5N.m, 10N.m to 12N.m, it covers a wide range of industrial scenarios.

Product Introduction

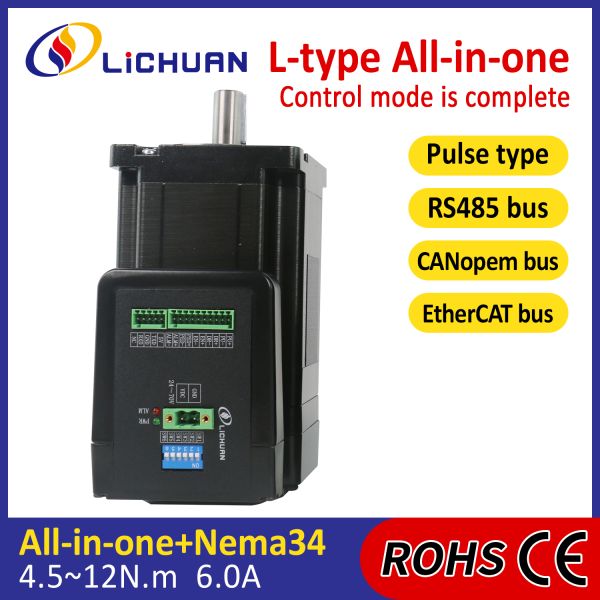

Closed Loop Integrated Stepper Motors Driver by Lichuan is an L-shaped integrated motion control solution combining stepper motor, driver, and encoder in one compact unit. Covering torque ranges from 0.4N.m to 12N.m, this Closed Loop Integrated Stepper Motors Driver supports NEMA17, NEMA23, NEMA24, and NEMA34, making it suitable for light-duty to heavy-duty industrial automation applications.

Product Information

The Lichuan Closed Loop Integrated Stepper Motors Driver is available in both closed-loop and open-loop versions. It supports 24V / 36V / 48V DC, current options 2.5A / 4.0A / 6.0A, and integrates a 1000PPR incremental encoder for closed-loop models. The L-shaped structure allows flexible installation and compact cabinet design.

Basic Information

Brand: Lichuan
Product Name: Closed Loop Integrated Stepper Motors Driver
Structure: L-Shaped Integrated Design
Phase: 2 Phase
Control Mode: Closed Loop / Open Loop Optional
Encoder: 1000PPR (Closed Loop)
Frame Sizes: NEMA17 / NEMA23 / NEMA24 / NEMA34

Specifications

Rated Voltage: DC 24V / 36V / 48V
Rated Current: 2.5A / 4.0A / 6.0A
Torque Range: 0.4N.m – 12N.m
Encoder Resolution: 1000PPR
Cooling Method: Natural Cooling
Installation: Standard NEMA Mounting

The Closed Loop Integrated Stepper Motors Driver supports OEM parameter configuration.

Product Selling Points

Wide torque coverage from 0.4N.m to 12N.m
One series supports NEMA17 to NEMA34
Closed-loop feedback eliminates step loss
Open-loop option for cost-sensitive projects
Compact L-shaped Closed Loop Integrated Stepper Motors Driver design

Product Features

Motor + Driver + Encoder integrated
Closed loop and open loop selectable
Anti-resonance control algorithm
Over-voltage, over-current, over-temperature protection
Easy upgrade from traditional stepper systems

All features are optimized for the Closed Loop Integrated Stepper Motors Driver platform.

Product Technology

The Closed Loop Integrated Stepper Motors Driver adopts DSP-based digital control with encoder feedback. By dynamically adjusting current and torque, the system maintains precise positioning under varying load conditions.

Working Principle

The Closed Loop Integrated Stepper Motors Driver compares command signals with real-time encoder feedback (1000PPR). Any deviation is corrected instantly through current regulation, ensuring stable motion without step loss.

Application Fields

CNC engraving and cutting machines
Packaging and labeling equipment
Industrial automation systems
Robotics and intelligent equipment
Medical and laboratory automation
Textile, printing, and woodworking machinery

Product Usage

The Closed Loop Integrated Stepper Motors Driver is widely used for linear actuators, ball screw modules, conveyors, rotary tables, and positioning platforms requiring reliable motion control.

Product Parameter Table

Item	Specification
Frame Size	NEMA17 / 23 / 24 / 34
Phase	2 Phase
Voltage	DC 24V / 36V / 48V
Current	2.5A / 4.0A / 6.0A
Torque	0.4 – 12 N.m
Encoder	1000PPR
Control Mode	Closed Loop / Open Loop

Product Advantages

One platform covers multiple torque levels
Reduced wiring and cabinet space
Higher reliability than open-loop stepper motors
Lower cost compared with servo systems
Flexible selection for different applications

The Closed Loop Integrated Stepper Motors Driver reduces total system cost.

Product Services

OEM / ODM customization
Parameter tuning support
Wiring diagrams and manuals
Global shipping and logistics

Production Process

Motor winding and assembly
Encoder installation and calibration
Driver PCB assembly
Integrated system aging test
Final quality inspection

Operation Method

Connect DC power supply
Wire control signals
Set parameters according to motor size
Perform no-load test
Install into equipment

Precautions

Use correct voltage and current rating
Ensure proper heat dissipation
Avoid incorrect wiring of encoder
Follow installation manual strictly

Company Introduction

Lichuan specializes in integrated motion control solutions, including Closed Loop Integrated Stepper Motors Driver, integrated servo motors, and automation products. Our solutions are exported worldwide for industrial applications.

Product Certificates

CE Certification
RoHS Compliance
ISO9001 Quality System

Quality Assurance

Every Closed Loop Integrated Stepper Motors Driver is strictly tested for performance, reliability, and safety before delivery.

Customer Service Information

Pre-sales technical consultation
After-sales technical support
24-hour response service
Long-term project cooperation

FAQ

Q1: What is the difference between closed loop and open loop models?
A: Closed-loop Closed Loop Integrated Stepper Motors Driver uses encoder feedback to prevent step loss, while open-loop is more cost-effective.

Q2: Can one driver cover multiple NEMA sizes?
A: Different frame sizes use different motor models, but all belong to the same product series.
